45/35 1100MPA Concrete Loose Hooked Ends Steel Fiber for Concrete Reinforcement

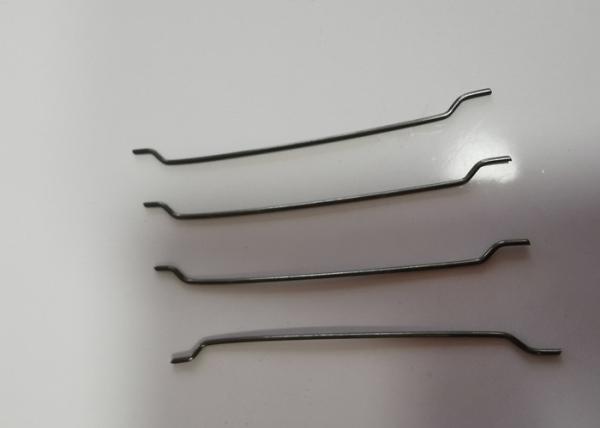

Hooked End Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1100MPa. Due to this high strength,the uniform distribution of fibers, stresses can be fully dispersed and cracking be effectively controlled.
Specification of Hooked End Steel Fiber
Hooked End
Steel Fiber | Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) |
| YS-60/60 | 1 | 60 | 60 | ≥1000 |
| YS-50/50 | 1 | 50 | 50 | ≥1000 |
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 |
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 |
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 |
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 |
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 |
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 |
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 |
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 |
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 |
Advantage of Hooked End Steel Fiber
1. Totally or partially replace the steel bar,save material and labor cost
2. Make the concrete slab thinner
3. Wider joint spacing
4. Easy to use
5. Speed up the process of construction
6. Insisting crack
7. Shock resistance
8. Anti-fatigue
9. High impact resistance
10. Fatigue endurance limit greater
11. Reducing the maintenance cost
12. Long service lifetime
