1350Mpa Loose Hooked Ends Steel Fiber Cracking Resistance in Industrial Flooring

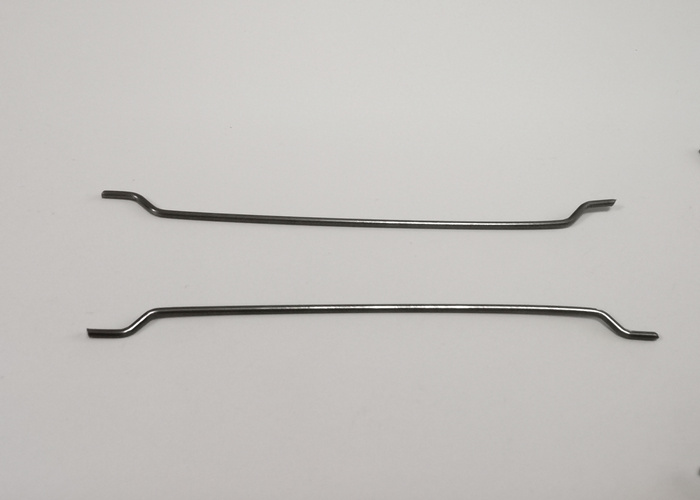

Hooked End Steel Fiber introduction
Hooked end steel fiber is manufactured by high quality wire rod with 6.5mm, which has excellent mechanical properties including high tensile strength. Hence, the average tensile strength of the reinforced fibre surpasses 1350MPa.
Lately, it has become more frequent to substitute steel reinforcement with steel fiber reinforced concrete. The applications of steel fiber reinforced concrete have been varied and widespread, due to which it is difficult to categorize. The most common applications are tunnel linings, slabs, and airport pavements.
Many types of steel fibers are used for concrete reinforcement. Round fibers are the most common type and their diameter ranges from 0.4 to 1.0 mm. Deformed fibers in the form of a bundle are also used. The main advantage of deformed fibers is their ability to distribute uniformly within the matrix.
Specification of Hooked End Steel Fiber
Hooked Ends
Steel Fiber | Model | Diameter (mm) | Length (mm) | Aspect ratio (mm) | Tensile strength (MPa) |
|
| YS-60/60 | 1 | 60 | 60 | ≥1000 |
| YS-50/50 | 1 | 50 | 50 | ≥1000 |
| YS-65/60 | 0.9 | 60 | 65 | ≥1000 |
| YS-55/50 | 0.9 | 50 | 55 | ≥1000 |
| YS-80/60 | 0.75 | 60 | 80 | ≥1000 |
| YS-45/35 | 0.75 | 35 | 45 | ≥1000 |
| YS-50/30 | 0.6 | 30 | 50 | ≥1100 |
| YS-55/30 | 0.55 | 30 | 55 | ≥1100 |
| YS-65/35 | 0.53 | 35 | 65 | ≥1100 |
| YS-60/30 | 0.5 | 30 | 60 | ≥1100 |
| YS-50/25 | 0.5 | 25 | 50 | ≥1100 |
| YS-60/25 | 0.4 | 25 | 60 | ≥1100 |
Application:
- Shotcrete, tunnel linings.
- Mass concrete composite deck construction.
- Precast concrete.
- Industrial slabs on ground
- High-speed railway
- Hydro power station
- Military project
- Aircraft runway
FAQ:
1. Are you the factory?
Yes, we are, located in the hometown of wire mesh.
2. How far from Beijing airport?
It takes three hours from our factory to Peking airport,about 300km.
3. Can you accept OEM?
Yes, we can.
4. What is your delivery time?
Generally it needs 10days for 20’ container.
5. What is your minimum order of quantity?
1ton.
6. What is your payment terms.
T/T, L/C at sight, usance letter of credit, Western Union.
Products and Delivery
|
|
1350Mpa Loose Hooked Ends Steel Fiber Cracking Resistance in Industrial Flooring Images
|
